SS-6446-NF
Manufacturer:
Stewart Connector
Mfr.Part #:
SS-6446-NF
Datasheet:
Description:

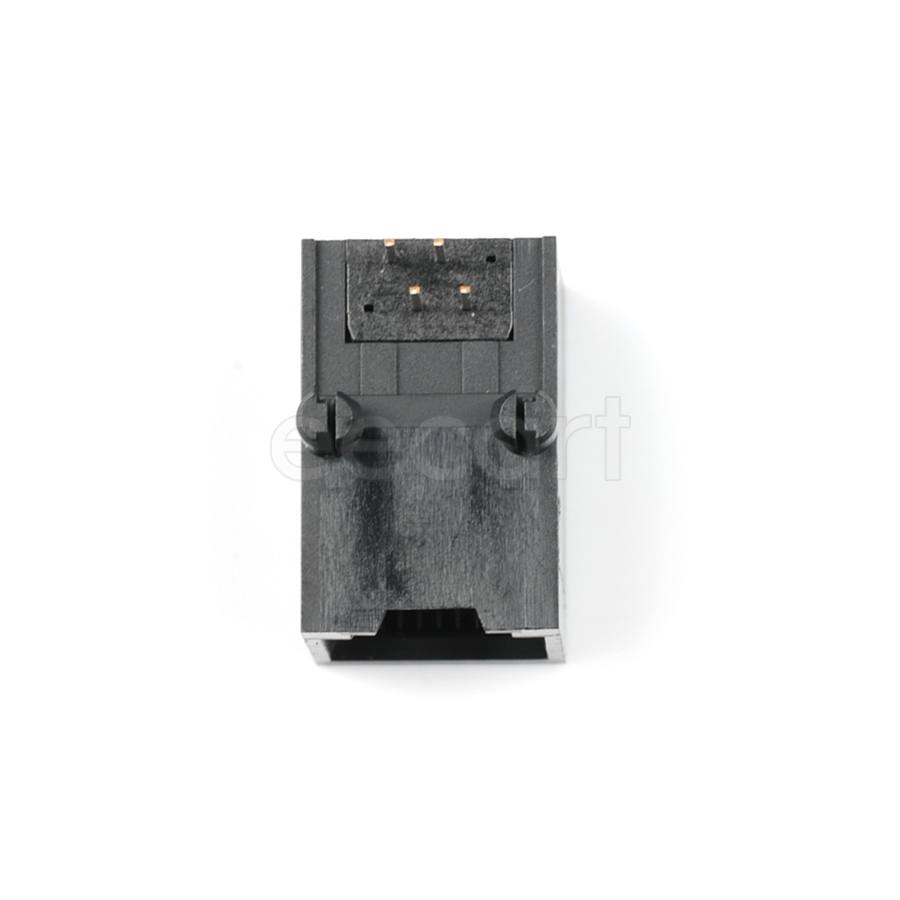

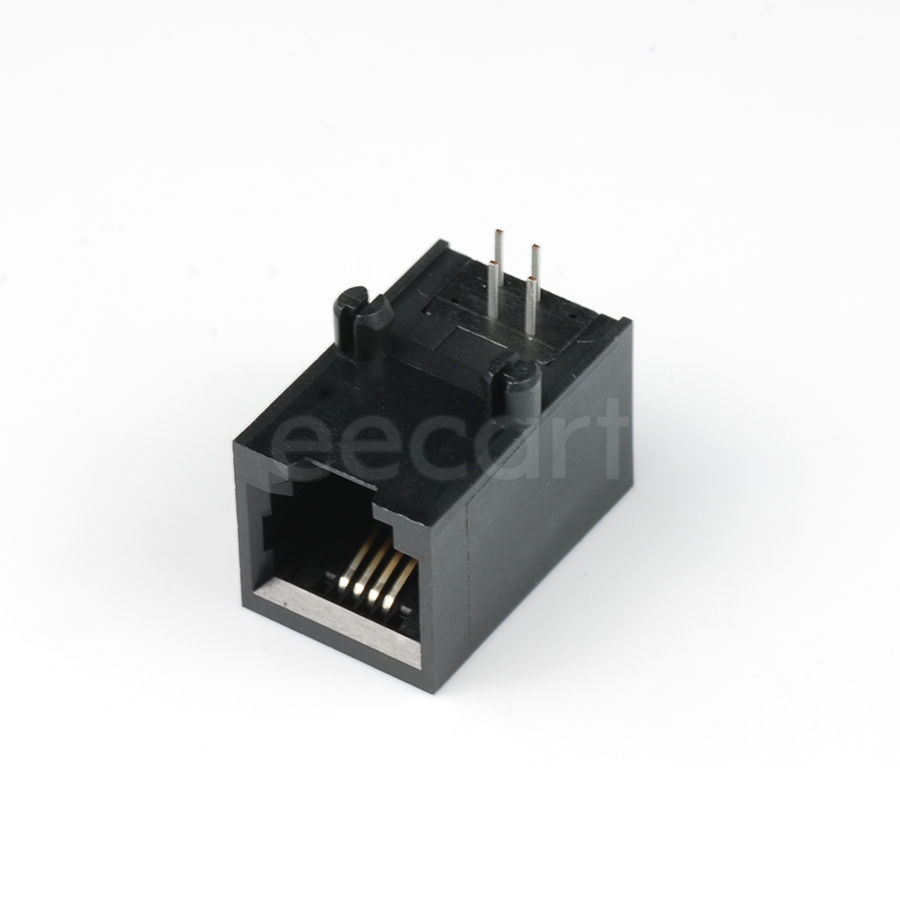

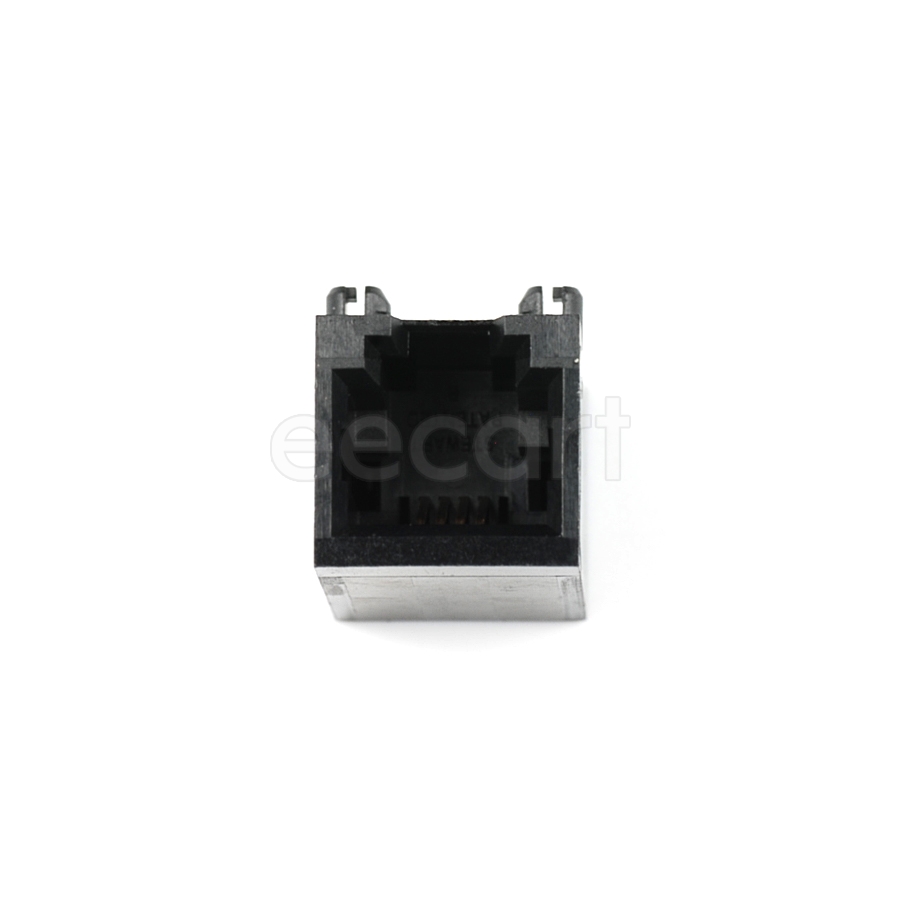

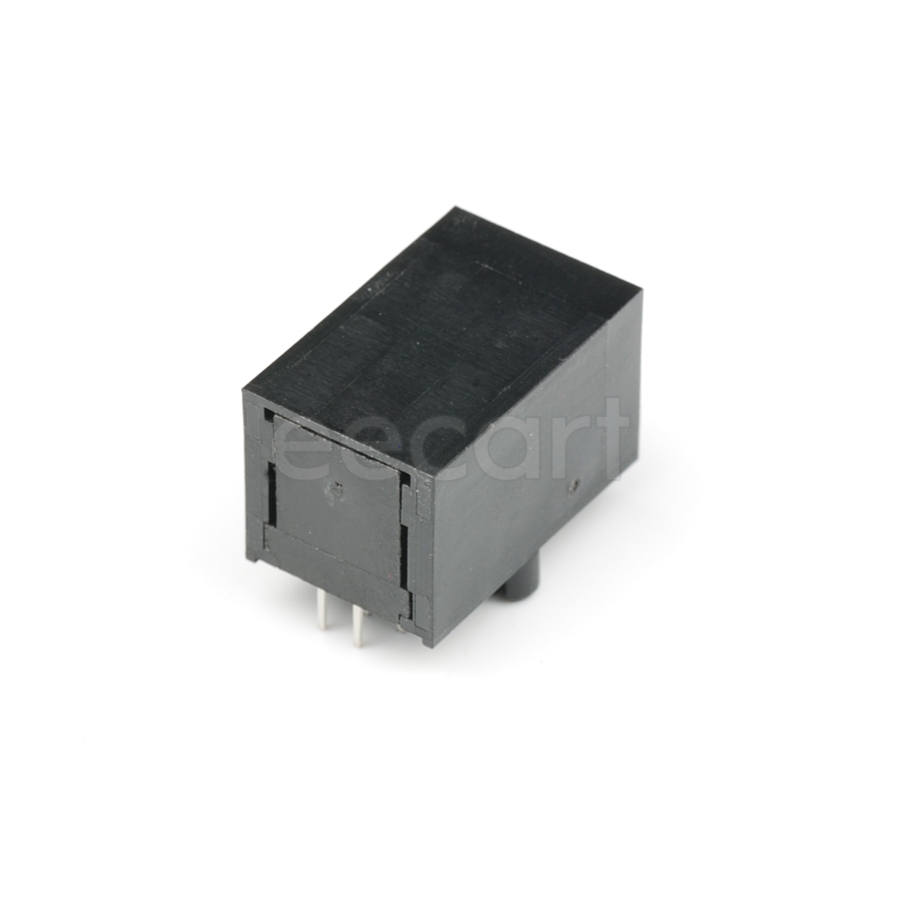

Modular / Ethernet Connectors Through Hole RJ45 Female
| Parameter | Value |
|---|---|
| Length | 13.64 mm |
| Width | 13.18 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tube |
| Depth | 20.7 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 9 months ago) |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 6 |
| Direction(Counting Sequence) | Down |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Number of Positions Loaded | 4 |
| Mounting Angle | 90 °(Right) |
| Performance Category | |
| Accessory Type | |
| USOC Codes | RJ45 |
| Number of Positions/Contacts | 6P4C |
Stock: 2510
Distributors
pcbx
pcbxUnit Price$0.68167
Ext.Price$0.68167
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.68167 | $0.68167 |
| 10 | $0.58067 | $5.80670 |
| 25 | $0.54409 | $13.60225 |
| 50 | $0.50981 | $25.49050 |
| 100 | $0.47769 | $47.76900 |
| 300 | $0.44759 | $134.27700 |
| 500 | $0.41939 | $209.69500 |
| 1000 | $0.39297 | $392.97000 |
